Technology X Tomorrow's Technology Today!
FEATURES & SPECIFICATIONS
The following table below outlines the detailed specifications of the Toughpower DPS G PSU:
| P/N | PS-TPG-0850DPCP**-P |
| Short P/N | TPG-0850D-P |
| Model | TPG-0850DH5FEP |
| Type | Intel ATX 12V 2.31 & SSI EPS 12V 2.92 |
| Max. Output Capacity | 850W |
| Peak Output Capacity | 1020W |
| Color | Black |
| Dimension | 150mm(W) x 86mm(H) x 180mm(L) |
| PFC （Power Factor Correction） | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16ms at 75% load |
| Input current | 11A – 5.5A |
| Input Frequency Range | 60Hz – 50Hz |
| Input Voltage | 100V – 240V |
| Operating Temperature | 0 ℃ to +50℃ |
| Operating Humidity | 10% to 90%,non-condensing |
| Storage Temperature | -20 ℃ to +60 ℃ |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 14cm dual ball bearing Fan: 1500R.P.M. ± 10% |
| Efficiency | MEET 80 Plus PLATINUM at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| Safety Approval | UL/ Bauart Mark+CB/ FCC/ CE/ EAC |
| PCI-E Connector | PCI-E 6+2pin X 6 |
The biggest feature of the Toughpower DPS G PSU that has us most intrigued is the ability to monitor and record power consumption. Thermaltake accomplishes this by used Smart Power Management (SPM), the video below gives you a quick insight as to it’s features:

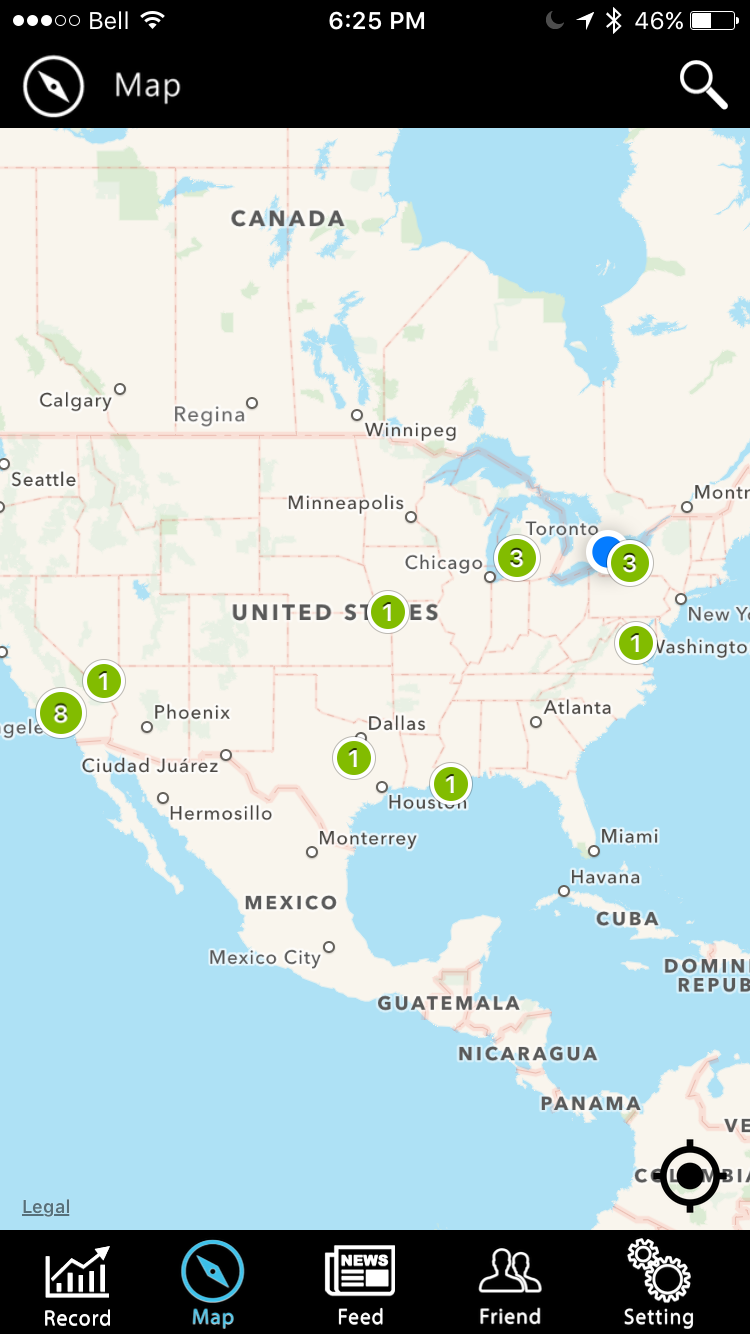

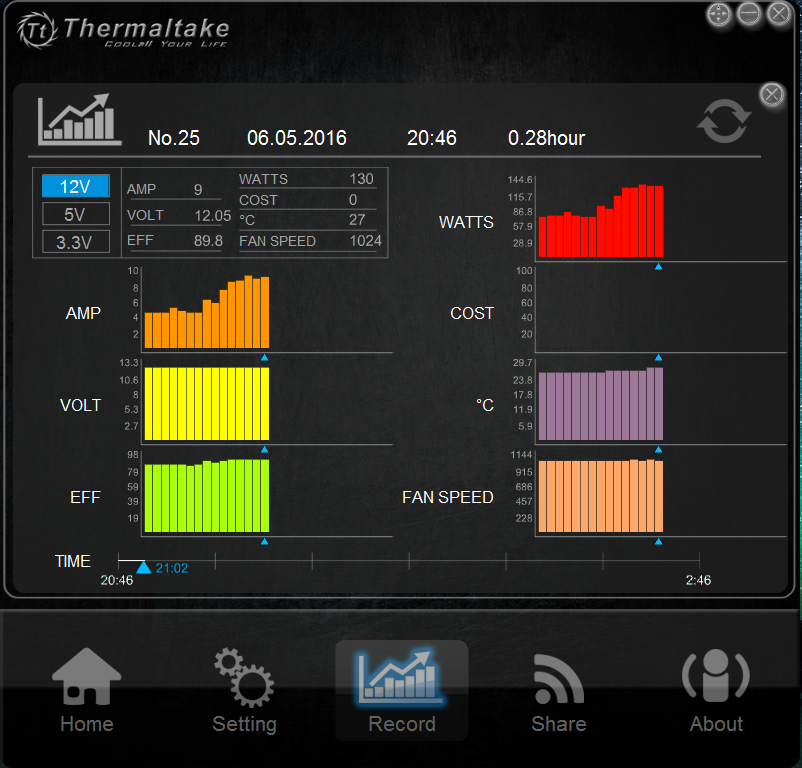

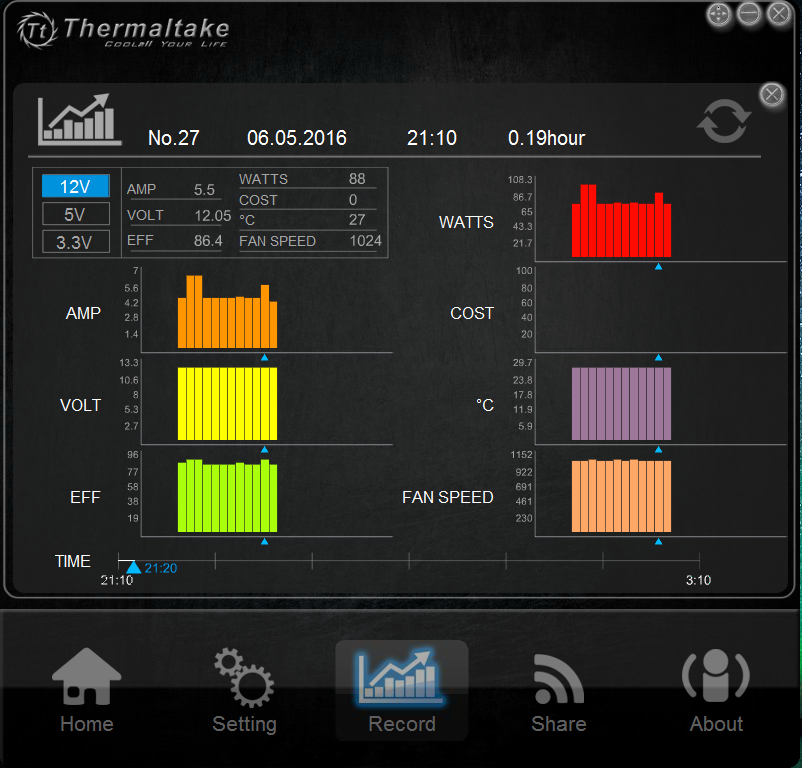

SPM provides a great graphical user interface to allow you to monitor and record not only amperage, but wattage, efficiency, temperatures, fan speeds and cost. All of which can be monitored remotely via the website or the mobile app.

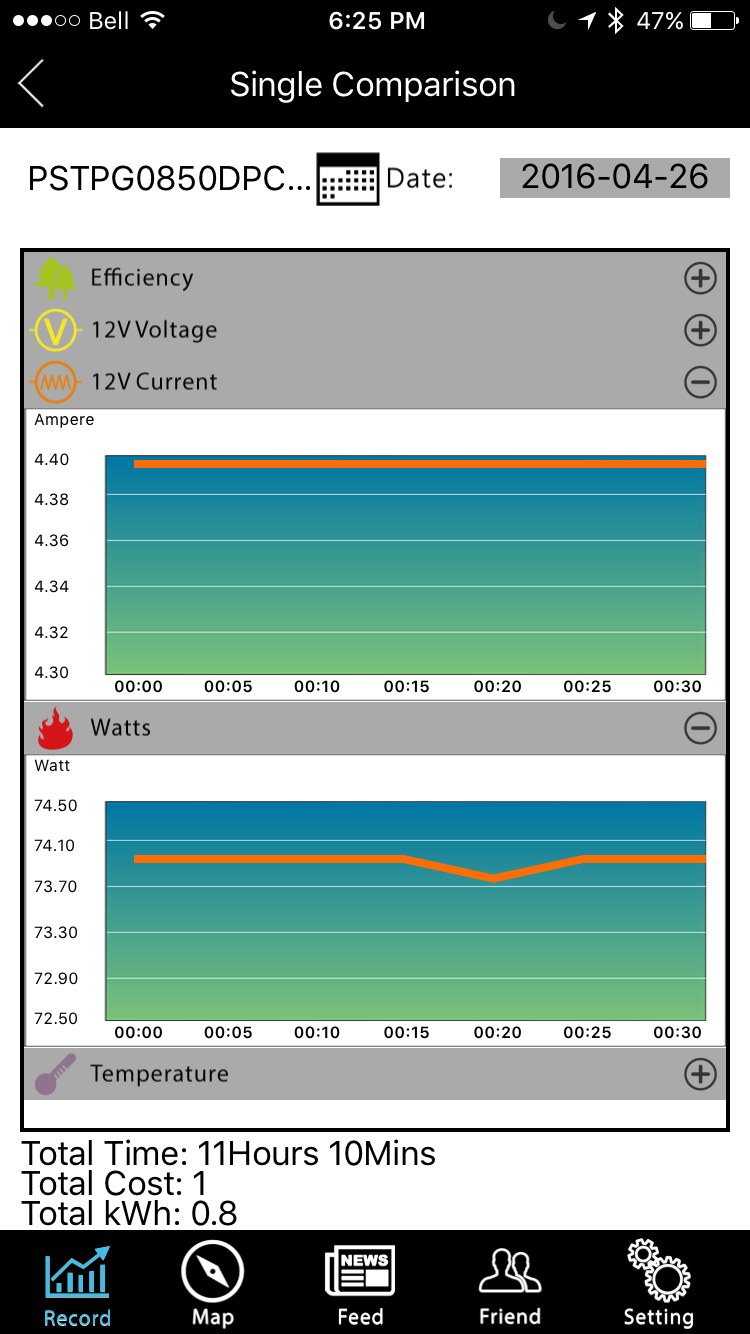

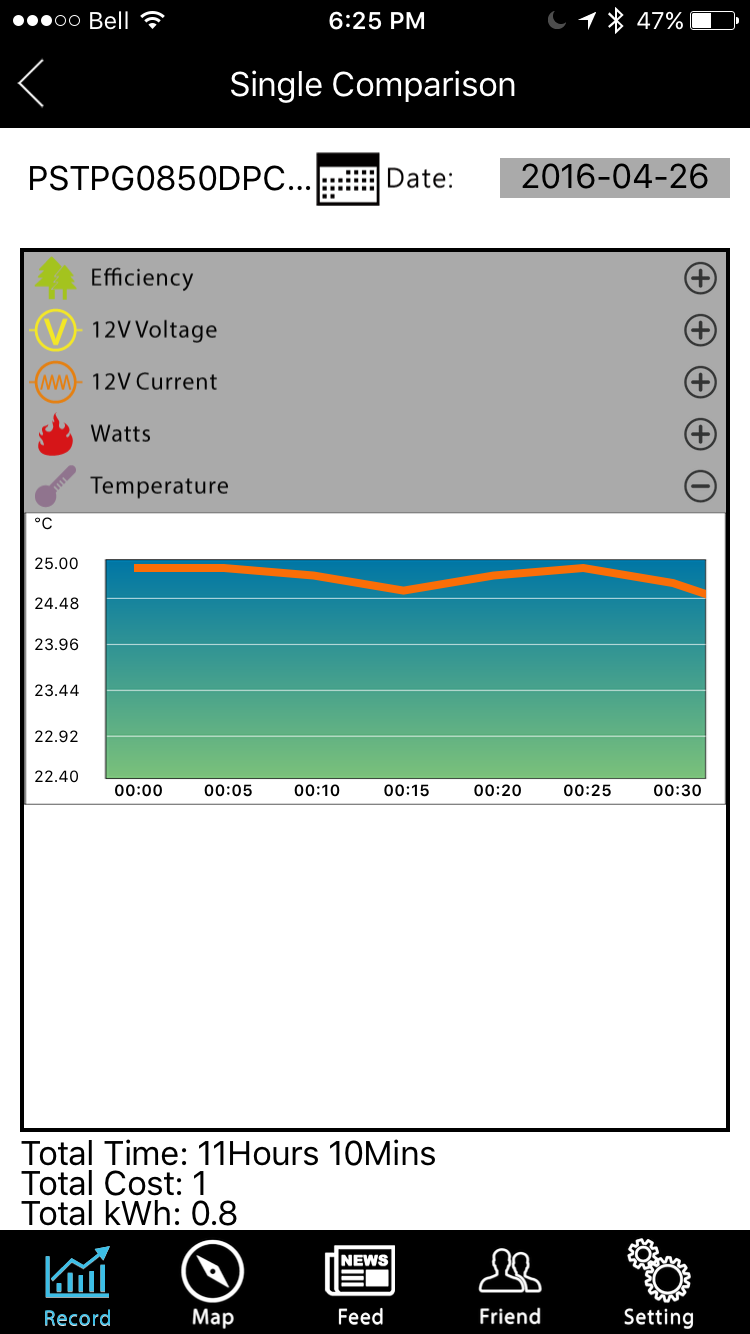

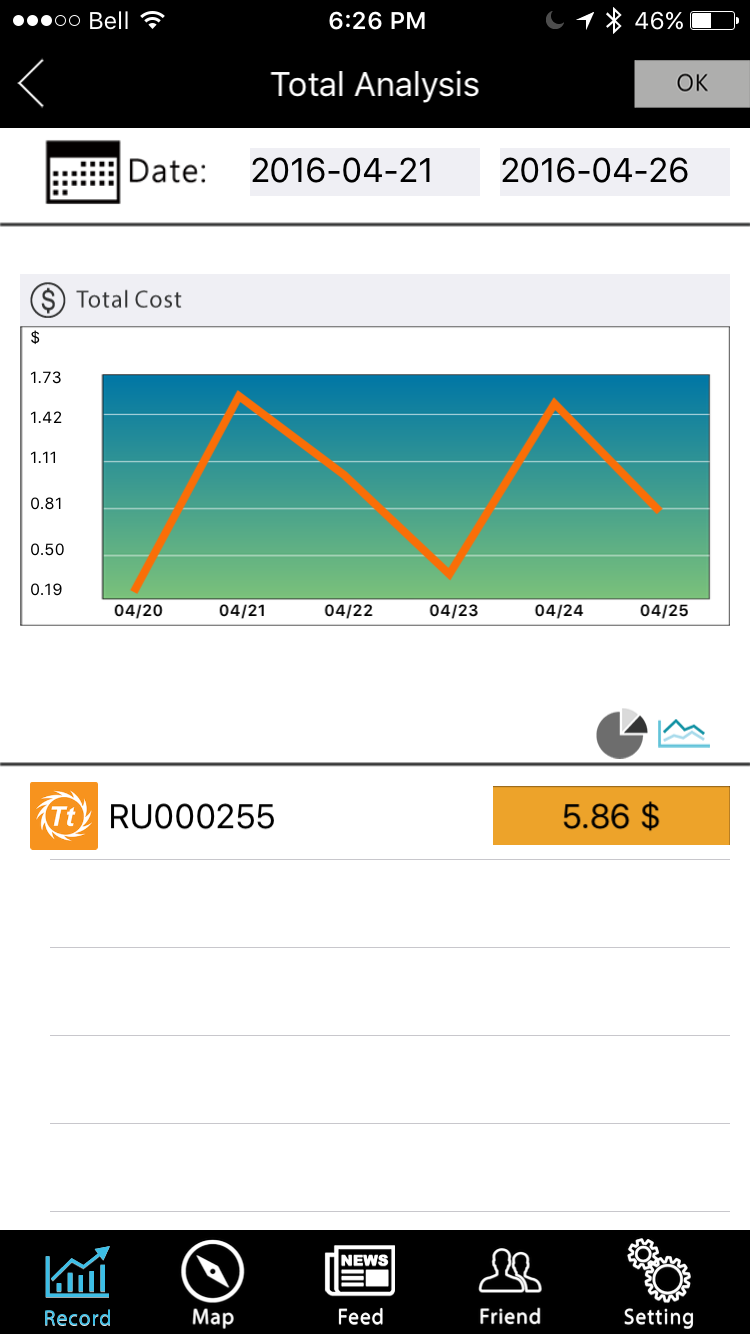

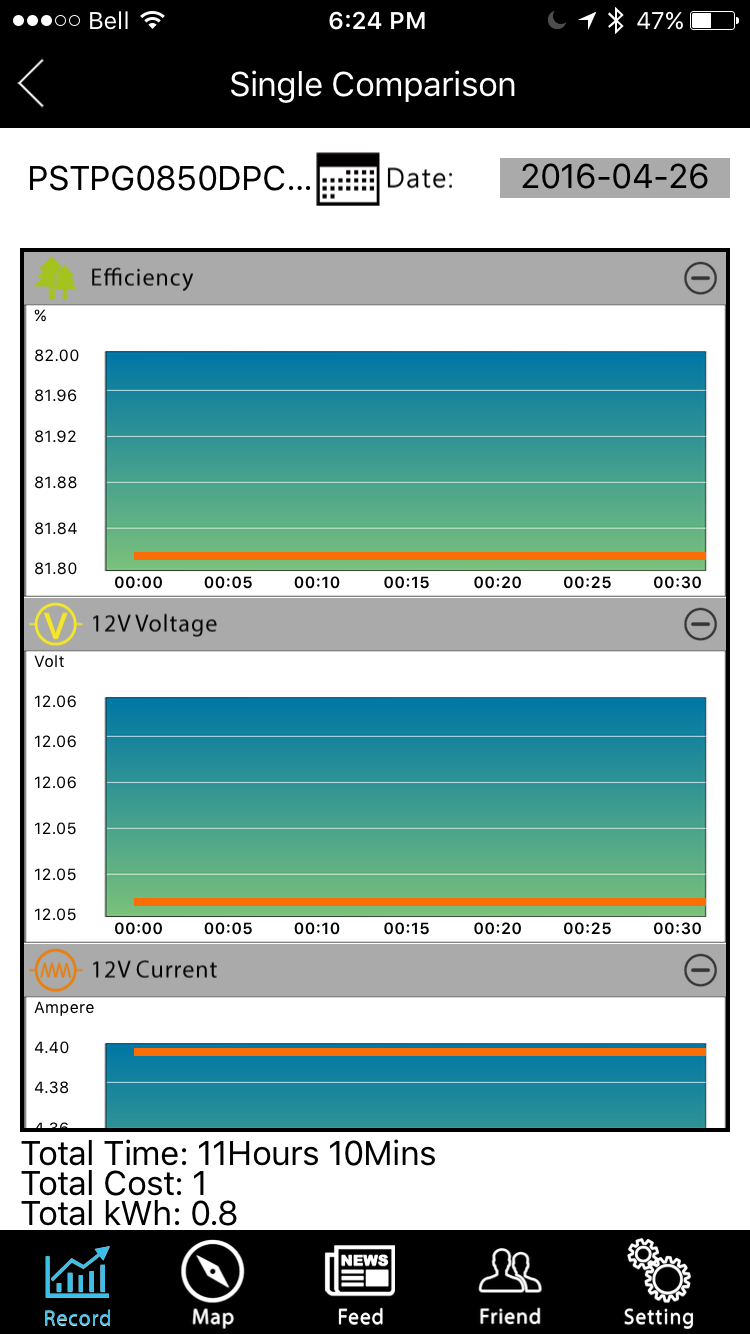

The mobile app for iOS is extremely quick to use and user-friendly. From the initial screen you can access a single comparison or a total analysis screen. The single comparison let’s you access a single PSU and compare various stats. The total analysis page lets you see all of your PSUs’ together and how they are functioning as a team.
To match the ability to keep tabs on your usage, you are also greeted with a 80 Plus Platinum efficiency that guarantees the PSU will deliver up to 91% efficiency.
Thermaltake lists the MSRP of this PSU to be $199.99, but if you head on over to Amazon, you can pick it up for $50 cheaper!
Keep reading for more on our upgrades and performance testing!
